NFOX mountain bike oil disc brake oil needle installation insertion tool oil pipe cutting oil pipe cutter repair
$3.86
Seller
Hulalabuy Warehouse, Shipping Fee
CNY
本店所有商品标价均为不含税价，开票须另加税点，详情询问客服。
1.关于选购：本店商品均为正品，如需大量采购，可联系客服获取更低价格。
2.关于发货：现货订单1-3天内发货，最多不超过7天；由于运费模板同时用于不同产品，运费可能出现偏差，您下单前可联系客服确认运费，本店默认发中通快递，货物较重（≥15KG）的情况下，默认发安能物流，如果快递有不到的地方，请告知，我们可以尽量转其他快递。要求发顺丰的客户，邮费到付（顺丰到付预付邮费一样）。香港和台湾的客户，首选顺丰，有顺丰禁寄物品的，可以其他快递，时效会慢1-2天。
3.不管什么问题，只要您有任何对于本产品的疑问，联系客服，客服会给到您满意的回复。
品名∶油针置入工具/安装剪切工具
颜色:本色
材料:铝合金
工艺:CNC
重量:净重60g
尺寸:108x25mm
包装:吸塑包装
用途:适用常见5或5.5mm外径油管及
各品牌油针或五线体安装
特点:多规格兼容，可裁切油管，
切口平齐，安装不易漏油。
Pipe cutting tools Installation Notes:⬇
First,When using a cutting knife to cut the tubing, the incision must be flat (the blade is sharp and can be replaced)
Secon,The common oil needle installation:
1. Needle-assisted positioning
2. Static placement
3. Compatible with common oil needles

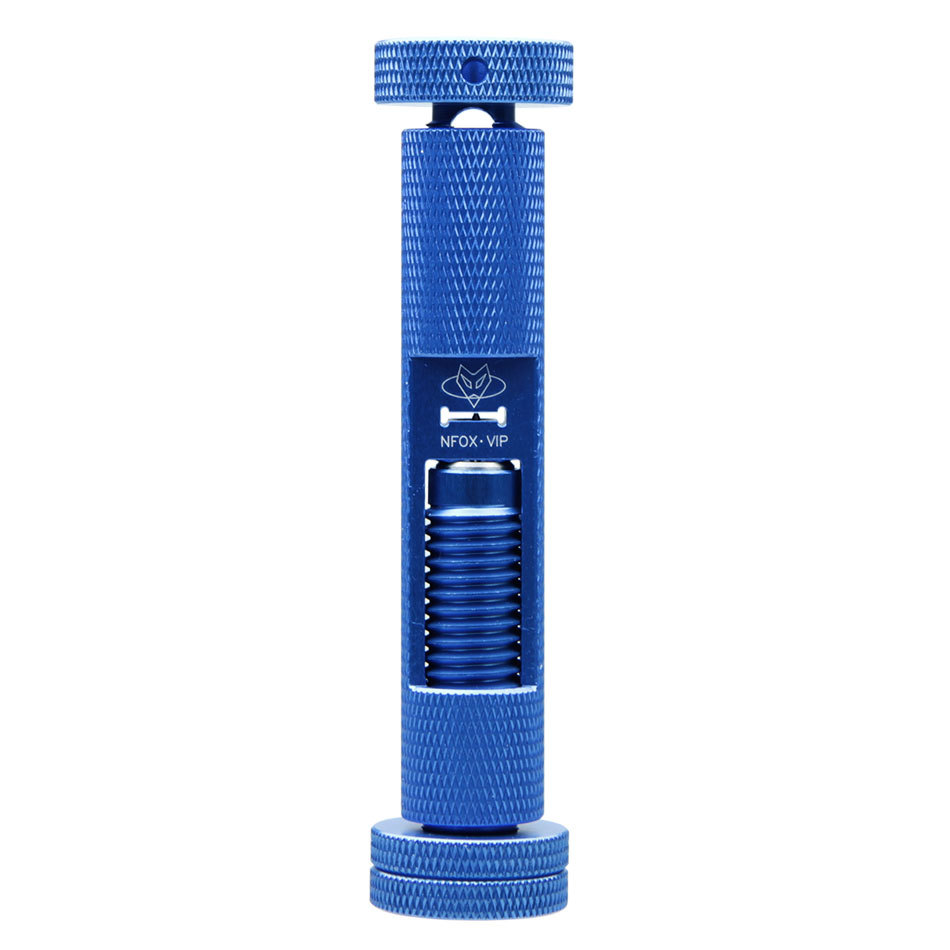

The oil pipe cutting/needle pressing integrated tool is made of aluminum alloy 6061 material CNC precision machining, with advanced design, reasonable structure, simple use, and many advantages!
油管切割/油针压入一体工具，采用航空铝AL6061数控精密加工而成，设计先进，结构合理，使用简单，优点多多！
Only palm sized, lightweight and easy to store
只有手掌大小，重量轻，易于存放
Disassembly diagram, exquisite CNC process, visible quality!
拆解实拍，精致的数控工艺，看得见的品质！
Compatible with various global standard oil needles, easy to operate and use!
兼容各种全球标准油针，操作简单，使用方便！
Special structural joints can also be used!
可以安装特殊的结构接头！五线体油针也轻松拿捏
Because there are too many types of brakes, we cannot guarantee that all models can adapt. Therefore, please refer to the relevant dimensions in the figure above to confirm whether they can adapt to your brakes. We are not responsible for not using them after purchase. Thank you!
由于制动器类型太多，我们不能保证所有型号都能适应。因此，请参考上图中的相关尺寸，以确认它们是否能够适应您的制动器。我们不负责在购买后不使用它们。非常感谢。
The oil storage bottle has a diameter of 32mm and a height of 80, which is made of aluminum alloy and plastic. It is designed with vacuum gravity, and should not be used too hard to prevent oil leakage!
储油瓶直径32毫米，高度80，由铝合金和塑料制成。它采用真空重力设计，拆卸时不应用力过猛，以防止漏油！
The above picture shows the assembled state of the NFOX tool, with advanced and reasonably designed structure to ensure no oil leakage during normal use!
The oil storage bottle has a diameter of 32mm and a height of 80, which is made of aluminum alloy and plastic. It is designed with vacuum gravity, and should not be used too hard to prevent oil leakage!
储油瓶直径32毫米，高度80，由铝合金和塑料制成。它采用真空重力设计，拆卸时不应用力过猛，以防止漏油！
The above picture shows the assembled state of the NFOX tool, with advanced and reasonably designed structure to ensure no oil leakage during normal use!
上图为NFOX工具的组装状态，结构先进合理，确保正常使用过程中不漏油！
The above picture shows the packaging style of the NFOX oil change and exhaust tool. It is possible to change the packaging style during the production process. The above picture is for reference only, and changing the packaging style will not be notified separately. Purchasing represents your acceptance!
The above picture shows the packaging style of the NFOX oil change and exhaust tool. It is possible to change the packaging style during the production process. The above picture is for reference only, and changing the packaging style will not be notified separately. Purchasing represents your acceptance!
上图显示了NFOX换油和排气工具的包装样式。在生产过程中可以改变包装风格。以上图片仅供参考，更改包装样式不另行通知。购买代表您的接受！
The above picture shows the EZmtb simple kit, which does not guarantee compatibility with all brake models. Please confirm whether it is possible based on the parameters when purchasing (mainly the size confirmation of the brake handle oil seal screws and the clamp oil seal screws)
The above picture shows the EZmtb simple kit, which does not guarantee compatibility with all brake models. Please confirm whether it is possible based on the parameters when purchasing (mainly the size confirmation of the brake handle oil seal screws and the clamp oil seal screws)
上图显示的是EZmtb简易套件，它不能保证与所有制动器型号兼容。请在购买时根据参数确认是否可以（主要是制动手柄油封螺钉和卡钳油封螺钉的尺寸确认）

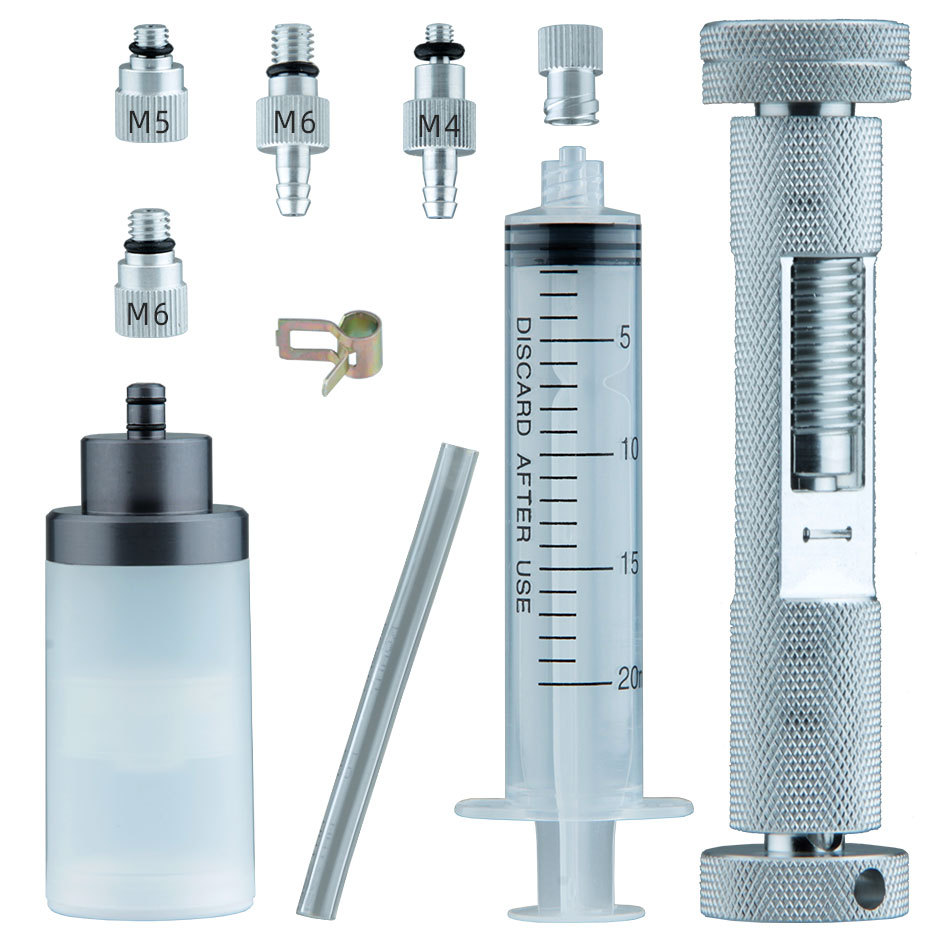

The above picture shows the EZmtb 2018 lite oil change and exhaust tool kit, which is compatible with 99% of the brake models on the market!
The above picture shows the EZmtb 2018 lite oil change and exhaust tool kit, which is compatible with 99% of the brake models on the market!
上图为EZmtb 2018 lite液压油更换和排气工具包，与市场上99%的制动器型号兼容！
Compared to 2018 Life, the connector material has been upgraded to copper, which is more durable and suitable for bicycle shops and professional technicians to use!
Compared to 2018 Life, the connector material has been upgraded to copper, which is more durable and suitable for bicycle shops and professional technicians to use!
与2018 Life相比，接头材质已升级为铜质，更耐用，适合自行车店和专业技术人员使用！
Compared to 2021 life, some accessories have been streamlined, but they can also meet most braking needs. Please purchase according to your needs!
Compared to 2021 life, some accessories have been streamlined, but they can also meet most braking needs. Please purchase according to your needs!
与2018 lite相比，一些配件进行了精简，但它们也可以满足大多数液压刹车需求。请根据您的需求购买！
Product name: Box nylon oil needle insertion tool/installation tool Color: Black Material: Nylon Process: injection molding, CNC, anodizing Weight: net weight 94g Size: 95x65x33mm; 86x37x23mm Packaging: Plastic box (105x105x35mm; 143g) Purpose: Suitable for common 5 or 5.5mm outer diameter oil pipes and Installation of various brands of oil needles or five wire bodies Features: Compatible with multiple specifications, capable of cutting oil pipes, The cut is flat and not prone to oil leakage during installation
Product name: Box nylon oil needle insertion tool/installation tool Color: Black Material: Nylon Process: injection molding, CNC, anodizing Weight: net weight 94g Size: 95x65x33mm; 86x37x23mm Packaging: Plastic box (105x105x35mm; 143g) Purpose: Suitable for common 5 or 5.5mm outer diameter oil pipes and Installation of various brands of oil needles or five wire bodies Features: Compatible with multiple specifications, capable of cutting oil pipes, The cut is flat and not prone to oil leakage during installation
产品名称：盒装尼龙油针插入工具/安装工具
颜色：黑色材料：尼龙工艺：注塑、数控、阳极氧化
重量：净重94g
尺寸：95x65x33mm；86x37x23mm
包装：塑料盒（105x105x35mm；143g）
用途：适用于普通外径为5或5.5mm的油管，安装各种品牌的油针或五线体
特点：兼容多种规格，可切割油管，切口平整，安装时不易漏油
Product name: Box nylon oil needle insertion tool/installation tool Color: Black Material: Nylon Process: injection molding, CNC, anodizing Weight: net weight 94g Size: 95x65x33mm; 86x37x23mm Packaging: Plastic box (105x105x35mm; 143g) Purpose: Suitable for common 5 or 5.5mm outer diameter oil pipes and Installation of various brands of oil needles or five wire bodies Features: Compatible with multiple specifications, capable of cutting oil pipes, The cut is flat and not prone to oil leakage during installation
产品名称：盒装铝合金油针插入工具/安装工具
Product name: Box nylon oil needle insertion tool/installation tool Color: Black Material: Nylon Process: injection molding, CNC, anodizing Weight: net weight 94g Size: 95x65x33mm; 86x37x23mm Packaging: Plastic box (105x105x35mm; 143g) Purpose: Suitable for common 5 or 5.5mm outer diameter oil pipes and Installation of various brands of oil needles or five wire bodies Features: Compatible with multiple specifications, capable of cutting oil pipes, The cut is flat and not prone to oil leakage during installation
产品名称：盒装铝合金油针插入工具/安装工具
颜色：黑色
材料：尼龙
工艺：注塑、数控、阳极氧化
重量：净重94g
尺寸：95x65x33mm；86x37x23mm
包装：塑料盒（105x105x35mm；143g）
用途：适用于普通外径为5或5.5mm的油管，安装各种品牌的油针或五线体
特点：兼容多种规格，可切割油管，切口平整，安装时不易漏油
We have five types of oil needle copper sleeves that can be purchased separately. Please pay attention to your selection when placing an order
我们有五种类型的油针铜套，可以单独购买。下单时请注意您的选择
High pressure hydraulic oil pipes have an outer diameter of 5mm and an inner diameter of 2mm. There are 1-5 meters of different specifications available. There are five colors available: black, red, blue, green, and white. You can choose the length specifications when purchasing. Please leave a comment on the colors!
High pressure hydraulic oil pipes have an outer diameter of 5mm and an inner diameter of 2mm. There are 1-5 meters of different specifications available. There are five colors available: black, red, blue, green, and white. You can choose the length specifications when purchasing. Please leave a comment on the colors!
高压液压油管外径为5mm，内径为2mm。有1-5米的不同规格可供选择。有五种颜色可供选择：黑色、红色、蓝色、绿色和白色。您可以在购买时选择长度规格。颜色请购买时备注！
Material: high strength 7075CNC
Weight: about 3.2g
Surface: anodized/bright
Color: mysterious black, elegant red, bright silver, precious gold
Material: high strength 7075CNC
Weight: about 3.2g
Surface: anodized/bright
Color: mysterious black, elegant red, bright silver, precious gold
材料：高强度7075CNC
重量：约3.2克
表面：阳极氧化/光亮
颜色：神秘的黑色、优雅的红色、明亮的银色、珍贵的金色
Screw: stainless steel dust cover: rubber
螺钉：不锈钢防尘罩：橡胶
① 准备好产品和工具>>②根据需要切断油管>>③压入油针④ 拆卸油封螺钉>>⑤安装紧固螺钉>>⑥完成安装⑦ 安装排气瓶>>⑧安装注射器>>⑨完成注油排气
